Garmin Panoptix LiveScope Plus System W/ Mounting Hardware

Upping the ante on performance and image clarity, the Garmin LiveScope Plus System Bundle delivers the latest in LiveScope technology. Making it easy to see fish swimming around your boat in real-time, the Garmin LiveScope Plus System Bundle offers improved resolution, reduced noise, clearer images, and better target separation.

Adjust the transducer to fit where you fish, and the view will automatically change on your compatible Garmin chartplotter screen. Forward mode shows what’s out in front of your boat and slightly below, Down mode gives you a view of what’s directly below the boat, and Perspective mode is great for a top-down view. Included with a trolling motor shaft and barrel mount, plus the Perspective Mode Mount, the Garmin LiveScope Plus System Bundle features an attitude heading reference system that keeps your sonar view steady, even in rough conditions. Harnessing the power of the LVS34 transducer and the Livescope System Black Box (GLS10) together, the Garmin LiveScope Plus System Bundle redefines the standards for forward-facing sonar.

Features:

• High Resolution – 35% Improved target separation over existing LiveScope System.
• Image Sharpness – Brilliantly clear sonar returns, minimal noise and on-screen artifacts.
• Vivid Color – Compatible with the vivid color palettes for enhanced detail and clarity.
• Force Trolling Motor Compatible – Sized to fit the Garmin Force Trolling Motors as well as other leading trolling motors.
• Perspective Mode Mount (included) – Use all three modes with the included Perspective Mode Mount.
• Real-time Images – Real-time sonar ensures that your live images are as accurate as possible.
• Image stabilization – A built-in stabilizer system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
• Vivid color palettes – Choose from seven vivid color options – including Aqua, Caribbean, Lava and more – to see fish and structure in maximum contrast and clarity.

Dimensions:

• GLS 10 Sonar Black Box – 9.7” x 5.9” x 2.6”
• LVS34 Transducer – 6.4” x 3.1” x 1.9”

What’s in the box:

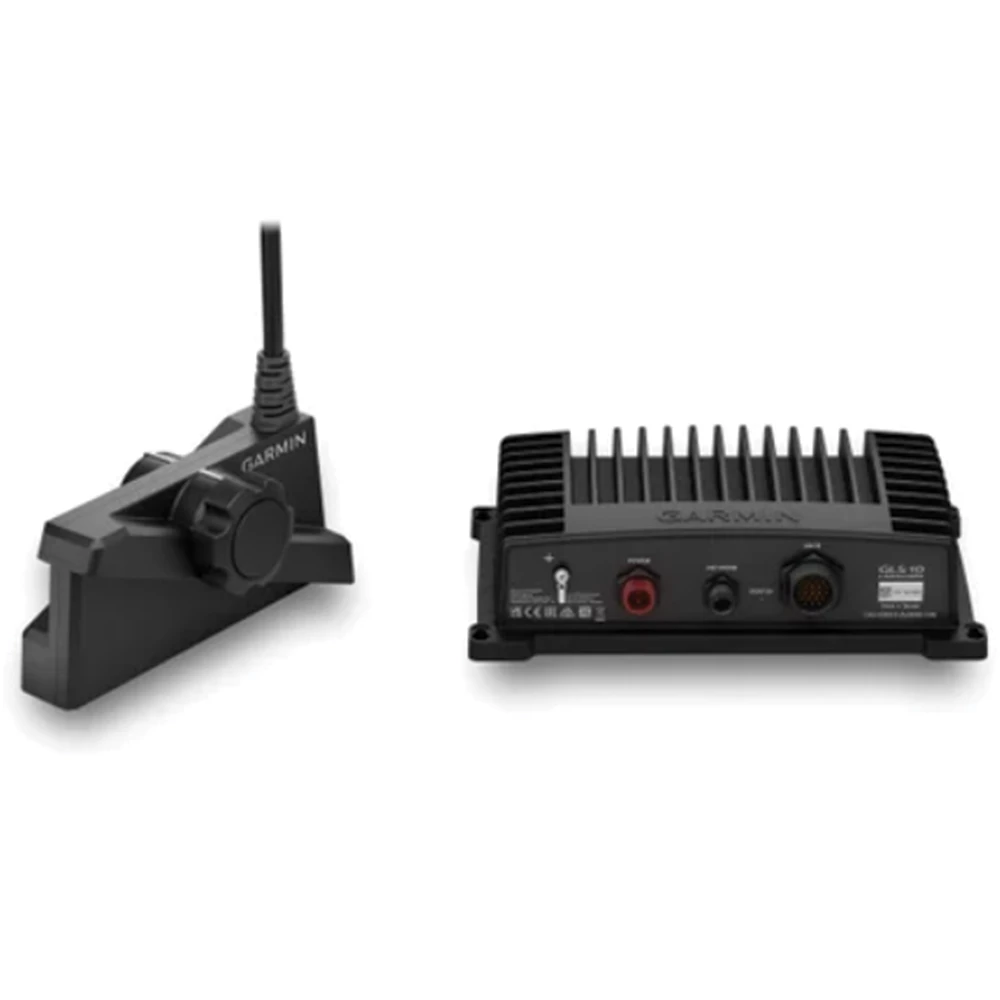

• LiveScope GLS 10 sonar black box

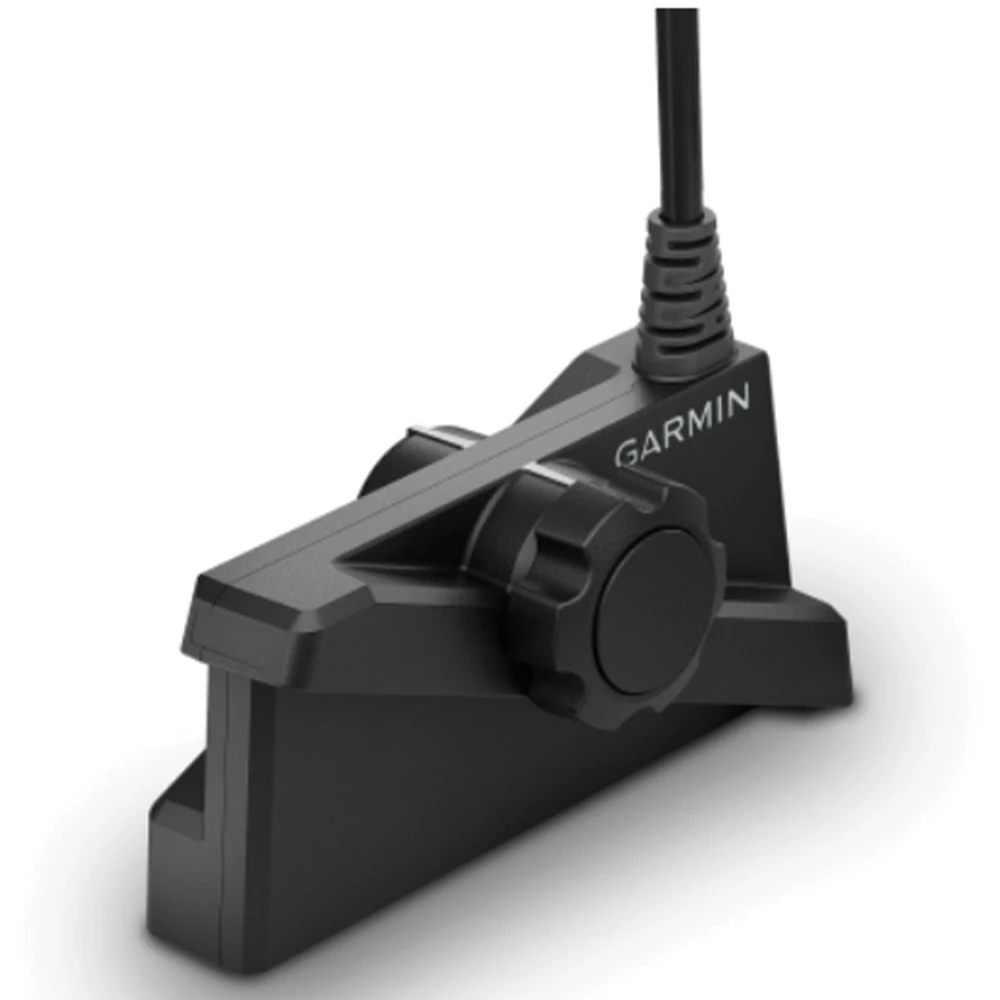

• Panoptix LVS34
• Perspective mount

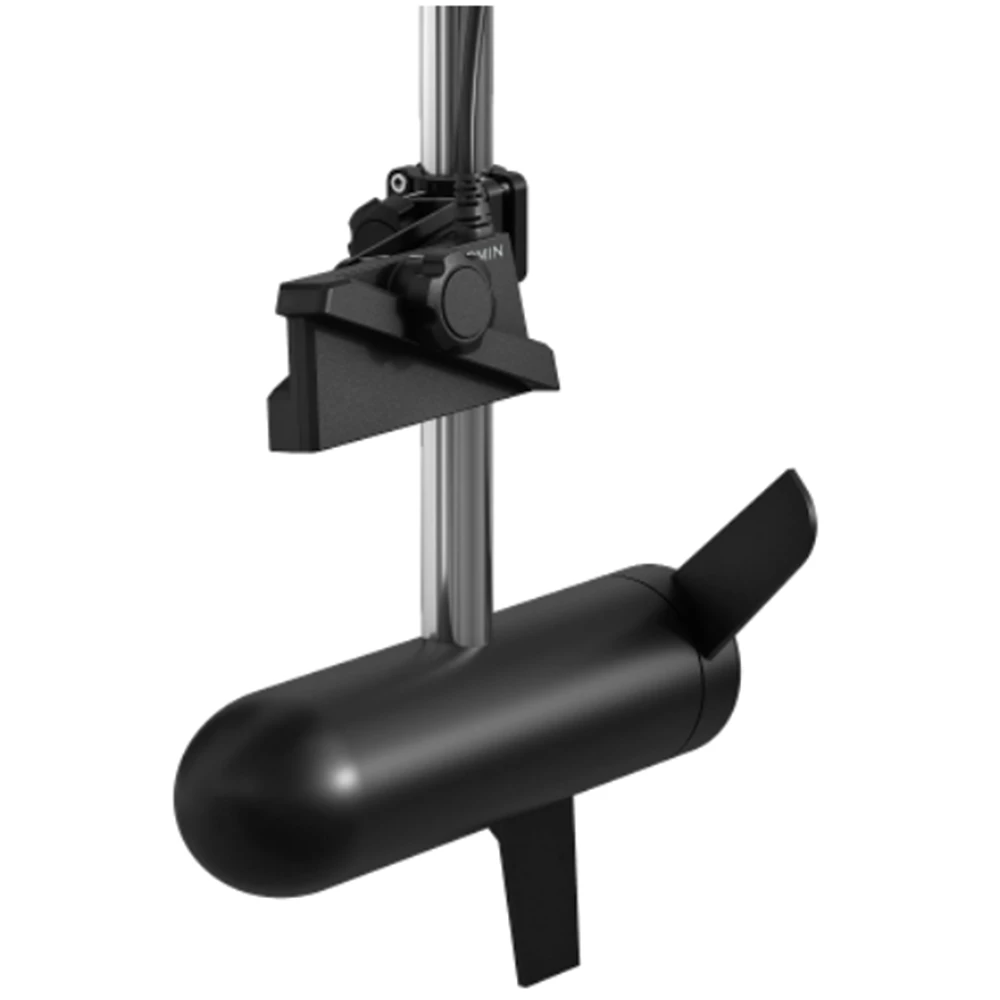

• Trolling motor barrel mount
• Shaft mount
• 2-meter Garmin Marine Network Cable (small connector)
• Network adapter cable
• Documentation

Garmin	LiveScope System Bundle
Transmit power	500 watts
Frequencies supported	530-1,100kHz
Max depth for forward range	200′
Target Separation (at 100′)	14″
Beam width	20-135-degrees
Arrays	3
Perspective Mode mount	Included
AHRS	Yes
Install Options	Trolling Motor/Transom
Transducer cable length	20′
